10. Caching

10.1. Caching overview

10.2. CloudFront

CloudFront provides improved latency, packet loss and overall quality. It avoids conflicts and network interconnect capacity. It offers greater operational control.

You can control how long your objects stay in a CloudFront cache before CloudFront forwards another request to your origin. Reducing the duration allows you to serve dynamic content. Increasing the duration means your users get better performance because your objects are more likely to be served directly from the edge cache. A longer duration also reduces the load on your origin.

Typically, CloudFront serves an object from an edge location until the cache duration that you specified passes — that is, until the object expires. After it expires, the next time the edge location gets a user request for the object, CloudFront forwards the request to the origin server to verify that the cache contains the latest version of the object.

The Cache-Control and Expires headers control how long objects stay in the cache. The Cache-Control max-age directive lets you specify how long (in seconds) you want an object to remain in the cache before CloudFront gets the object again from the origin server. The minimum expiration time CloudFront supports is 0 seconds for web distributions and 3600 seconds for RTMP distributions.

10.2.1. File versions

To control the versions of files that are served from your distribution, you can either invalidate files or give them versioned file names. If you want to update your files frequently, AWS recommends that you primarily use file versioning for the following reasons:

  • Versioning enables you to control which file a request returns even when the user has a version cached either locally or behind a corporate caching proxy. If you invalidate the file, the user might continue to see the old version until it expires from those caches.
  • CloudFront access logs include the names of your files, so versioning makes it easier to analyze the results of file changes.
  • Versioning provides a way to serve different versions of files to different users.
  • Versioning simplifies rolling forward and back between file revisions.
  • Versioning is less expensive. You still have to pay for CloudFront to transfer new versions of your files to edge locations, but you don’t have to pay for invalidating files.

10.2.2. Origin Access Identity (OAI)

When you create or update a distribution in CloudFront, you can add an origin access identity (OAI) and automatically update the bucket policy to give the origin access identity permission to access your bucket. Alternatively, you can choose to manually change the bucket policy or change ACLs, which control permissions on individual objects in your bucket. You can update the Amazon S3 bucket policy using either the AWS Management Console or the Amazon S3 API:

  • Grant the CloudFront origin access identity the applicable permissions on the bucket.
  • Deny access to anyone that you don’t want to have access using Amazon S3 URLs.

10.2.3. SNI Custom SSL

SNI Custom SSL relies on the SNI extension of the Transport Layer Security protocol, which allows multiple domains to serve SSL traffic over the same IP address by including the hostname which the viewers are trying to connect to.

Amazon CloudFront delivers your content from each edge location and offers the same security as the Dedicated IP Custom SSL feature. SNI Custom SSL works with most modern browsers, including Chrome version 6 and later (running on Windows XP and later or OS X 10.5.7 and later), Safari version 3 and later (running on Windows Vista and later or Mac OS X 10.5.6. and later), Firefox 2.0 and later, and Internet Explorer 7 and later (running on Windows Vista and later).

_images/sni.png

SNI Custom SSL

Some users may not be able to access your content because some older browsers do not support SNI and will not be able to establish a connection with CloudFront to load the HTTPS version of your content. If you need to support non-SNI compliant browsers for HTTPS content, it is recommended to use the Dedicated IP Custom SSL feature.

10.2.4. Lambda@Edge

Lambda@Edge is a feature of Amazon CloudFront that lets you run code closer to users of your application, which improves performance and reduces latency. With Lambda@Edge, you don’t have to provision or manage infrastructure in multiple locations around the world. You pay only for the compute time you consume - there is no charge when your code is not running.

With Lambda@Edge, you can enrich your web applications by making them globally distributed and improving their performance — all with zero server administration. Lambda@Edge runs your code in response to events generated by the Amazon CloudFront content delivery network (CDN). Just upload your code to AWS Lambda, which takes care of everything required to run and scale your code with high availability at an AWS location closest to your end user.

Lambda@Edge lets you run Lambda functions to customize the content that CloudFront delivers, executing the functions in AWS locations closer to the viewer. The functions run in response to CloudFront events, without provisioning or managing servers. You can use Lambda functions to change CloudFront requests and responses at the following points:

  • After CloudFront receives a request from a viewer (viewer request).
  • Before CloudFront forwards the request to the origin (origin request).
  • After CloudFront receives the response from the origin (origin response).
  • Before CloudFront forwards the response to the viewer (viewer response).
_images/cloudfront-events-that-trigger-lambda-functions.png

Cloudfront events that trigger Lambda functions

10.2.5. CloudFront signed URLs and signed cookies

CloudFront signed URLs and signed cookies provide the same basic functionality: they allow you to control who can access your content. If you want to serve private content through CloudFront and you’re trying to decide whether to use signed URLs or signed cookies, consider the following:

Use signed URLs for the following cases:

  • You want to use an RTMP distribution. Signed cookies aren’t supported for RTMP distributions.
  • You want to restrict access to individual files, for example, an installation download for your application.
  • Your users are using a client (for example, a custom HTTP client) that doesn’t support cookies.

Use signed cookies for the following cases:

  • You want to provide access to multiple restricted files, for example, all of the files for a video in HLS format or all of the files in the subscribers’ area of a website.
  • You don’t want to change your current URLs.
_images/PrivateContent_TwoParts.png

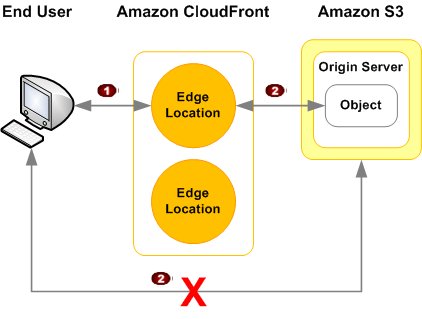

Private Content in CloudFront

10.2.6. Pricing

To estimate the cost of using CloudFront, you need to consider the following:

  • Traffic distribution. Data transfer and request pricing vary across geographic regions, and pricing is based on the edge location through which your content is served.
  • Requests. The number and type of requests made and the geographic region in which the requests are made.
  • Data transfer out. The amount of data transferred out of your Amazon CloudFront edge locations.

The benefit you get by caching dynamic content is that request and the response ride over the AWS backbone instead the public Internet.

You can set origins as a S3 for static content. For dynamic content, you can setup as origin EC2 instances, ELB instances, and HTTP servers. It supports SSL so that private content is protected.

10.3. Amazon ElastiCache

Amazon ElastiCache is a web service that makes it easy to deploy, operate, and scale an in-memory data store or cache in the cloud. The service improves the performance of web applications by allowing you to retrieve information from fast, managed, in-memory data stores, instead of relying entirely on slower disk-based databases.

_images/elasticache.png

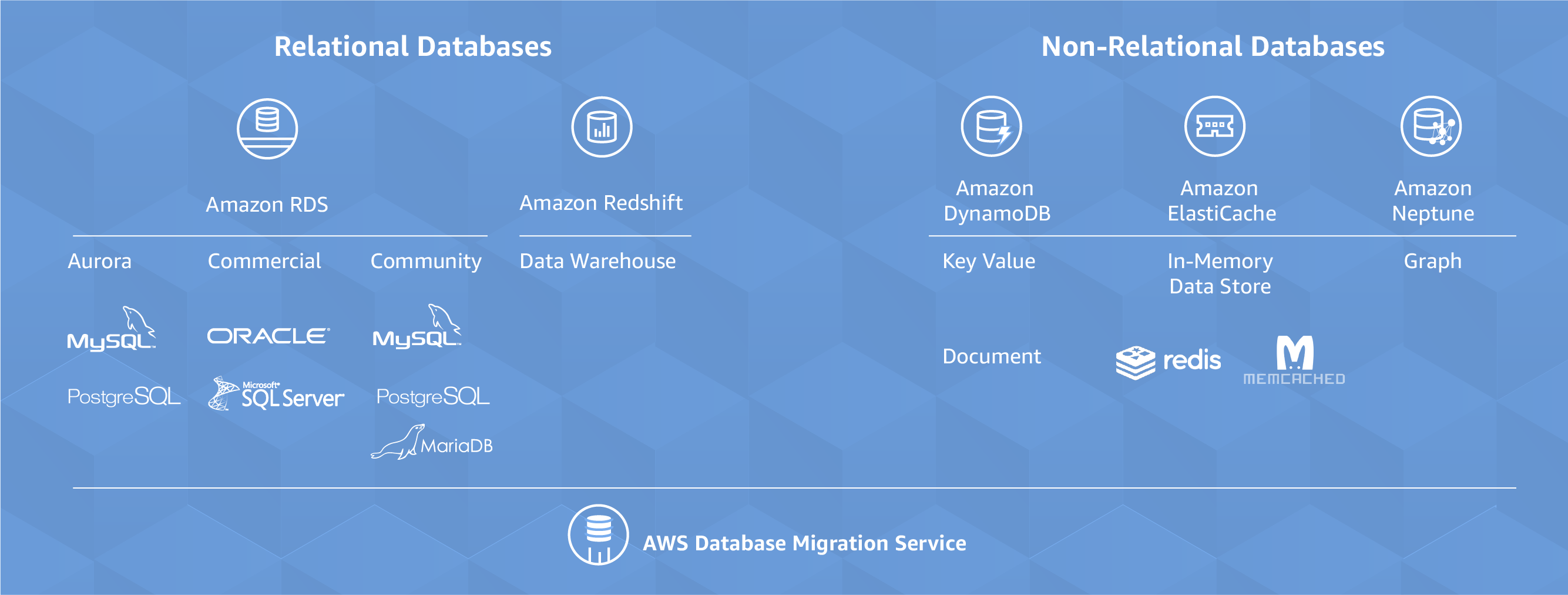

Amazon ElastiCache

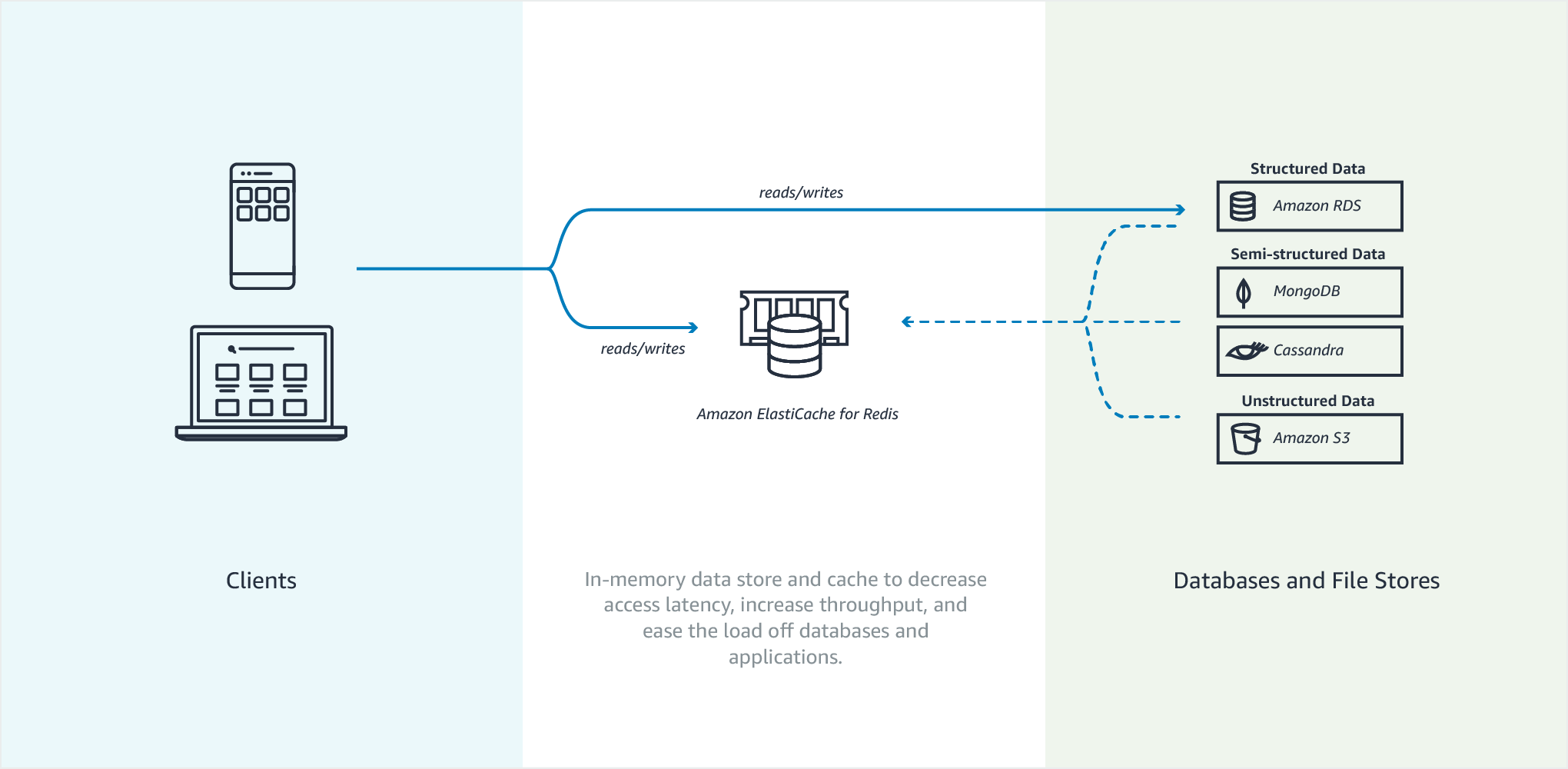

The primary purpose of an in-memory key-value store is to provide ultra-fast (submillisecond latency) and inexpensive access to copies of data. Most data stores have areas of data that are frequently accessed but seldom updated. Additionally, querying a database is always slower and more expensive than locating a key in a key-value pair cache. Some database queries are especially expensive to perform, for example, queries that involve joins across multiple tables or queries with intensive calculations.

By caching such query results, you pay the price of the query once and then are able to quickly retrieve the data multiple times without having to re-execute the query.

_images/ElastiCache-Caching.png

10.3.1. Redis

Using Redis AUTH command can improve data security by requiring the user to enter a password before they are granted permission to execute Redis commands on a password-protected Redis server. Hence, Option 3 is the correct answer.

To require that users enter a password on a password-protected Redis server, include the parameter --auth-token with the correct password when you create your replication group or cluster and on all subsequent commands to the replication group or cluster.

_images/ElastiCache-Redis-Secure-Compliant.png

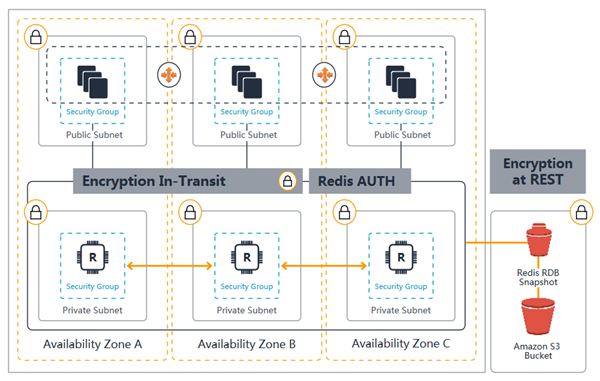

Amazon ElastiCache authentication and encryption

10.4. AWS Global Accelerator

AWS Global Accelerator is a service that improves the availability and performance of your applications with local or global users. It provides static IP addresses that act as a fixed entry point to your application endpoints in a single or multiple AWS Regions, such as your Application Load Balancers, Network Load Balancers or Amazon EC2 instances.

AWS Global Accelerator uses the AWS global network to optimize the path from your users to your applications, improving the performance of your TCP and UDP traffic. AWS Global Accelerator continually monitors the health of your application endpoints and will detect an unhealthy endpoint and redirect traffic to healthy endpoints in less than 1 minute.

_images/global-accelerator-how-it-works.png

Many applications, such as gaming, media, mobile applications, and financial applications, need very low latency for a great user experience. To improve the user experience, AWS Global Accelerator directs user traffic to the nearest application endpoint to the client, thus reducing internet latency and jitter. It routes the traffic to the closest edge location via Anycast, then by routing it to the closest regional endpoint over the AWS global network. AWS Global Accelerator quickly reacts to changes in network performance to improve your users’ application performance.

AWS Global Accelerator and Amazon CloudFront are separate services that use the AWS global network and its edge locations around the world. CloudFront improves performance for both cacheable content (such as images and videos) and dynamic content (such as API acceleration and dynamic site delivery). Global Accelerator improves performance for a wide range of applications over TCP or UDP by proxying packets at the edge to applications running in one or more AWS Regions. Global Accelerator is a good fit for non-HTTP use cases, such as gaming (UDP), IoT (MQTT), or Voice over IP, as well as for HTTP use cases that specifically require static IP addresses or deterministic, fast regional failover. Both services integrate with AWS Shield for DDoS protection.
